• Small footprint
  • Reduced height
  • Open frame design

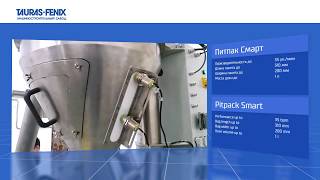

The PITPACK SMART is an optimal vertical wrapping (VFFS) solution for mid-speed packaging into standard three seam bags: pillow, gusseted, block-bottom. It can be used for processing of dry loose, powdery or small piece products in food and non-food industries.

Products to be packed:
Bulk: grains, pasta, dried fruits, snacks, tea, coffee beans, candies, sugar, salt, etc. Powders: dry milk, flour, starch, cocoa powder, etc.
Frozen: seafood, berries and vegetables, ready-to-cook meals, etc.
Non-food: dry household chemicals, bath salts, seeds, soil, fertilizers, animal food, etc

Kinematical speed, max, cycles/min. 65
Dose volume, max, l 2
Product tube diameter, mm 127
Bag width, max, mm 200
Bag length (single pulling), mm 310
Film type Polyethylene, polypropylene, laminates, barrier films, frost-resistant films
Film thickness, mcr 30-60
Film reel width, max, mm 435
Film reel diameter, mm 400
Film reel weight, max, kg 25
Film unwinding drive unit Asynchronous
Film pulling drive unit Asynchronous
Longitudinal seal drive unit Pneumatic
Transversal seal drive unit Pneumatic
Sealing type Continuous/Impulse
Filler as standard equipment No filler
Power supply 380 V, 3-Ph, 50 Hz
Power consumption, kW 3
Air pressure, MPa 0,6
Air consumption, l/min 400
Machine length, mm 1530
Machine width, mm 920
Machine height, mm 1340
Machine weight, kg 430
  • Bag forming unit
  • Film transport system
  • Longitudinal and cross sealing units
  • Control unit (compatible with any filler)
  • Dater in cross sealing jaws
  • Photo-cell
  • Seam cooling device
  • Side gusset forming unit
  • Block bottom forming unit
  • Euroslot punching device
  • Cliché/Ink printer
  • Impulse sealing unit
  • Inert gas injection unit
  • Dust aspiration unit
  • Static eliminators
