• Stainless Steel AISI 304 as standard equipment
  • High performances (Up to 140 bpm)
  • Motorized rotation of jaws as standard
  • Pneumatic vacuum pump on film pulling belts: less space and power consumption

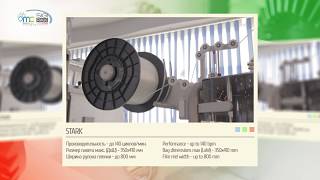

STARK is the new vertical packaging machine to realize a wide range of different types of packs of all the materials: rolled, extruded polythene, aluminates and paper; in packaging volume small, medium, large, extra large Doy Bag and 3-seal bags with or without Zip closure applicator.

The frame is entirely made in stainless steel AISI 304. Apart from this all groups that constitute the machine are made of anodized aluminum alloy compatible with FDA standards (not contamination in food contact and easy sanitization). The internal gears are driven by servo motors controlled in E-cam, this feature guarantee the perfect synchronization between the film pulling, jaws closing and square bottom precision.

Products to be packed:
Loose and small piece products: grains, pasta, dried fruits, snacks, tea, coffee beens, candies, sugar, salt, etc. Dusty products: dry milk, flour, starch, cocoa powder, etc. Frozen products: seafood, berries and vegetables, ready-to-cook foods, etc. Non-food products: dry household chemicals, bath salt, seeds, soil, fertilizers, animal feeds, etc. Liquid food and non-food products.
Kinematical speed, max, cycles/min. 140
Product tube diameter, mm 50-260
Bag width, mm 80
Bag width, max, mm 410
Bag length (single pulling), mm 350 (400/450 upon request)
Film type Thermo-sealing materials (polyethylene, laminates, polypropylene, barrier films)
Film reel width, mm 180
Film reel width, max, mm 800 (830 upon request)
Film reel diameter, mm 570
Film pulling drive unit Servo
Longitudinal seal drive unit Pneumatical
Transversal seal drive unit Servo
Sealing type Continuous
Power supply 220/380/400 V, 50 Hz
Power consumption, kW 4
Air consumption, l/min 30
Receipt number, pcs 100
Machine length, mm 2400
Machine width, mm 2200
Machine height, mm 1800
Machine weight, kg 800
Structure material Stainless steel AISI 304
  • Gas injection for bags in modified atmosphere
  • Hot leaf printing unit
  • Vacuum chamber device
  • Flat bottom forming brushless device
  • Device for four sealed edges
  • Doypack forming unit
  • Longitudinal zip applicator
  • Euroslot
  • Perforation pattern for easy opening
  • Many others on demand
