Automatic stacker SPM-HAS 200

Video:

Machines:

  • operates with both manual and fully automatic feeding;

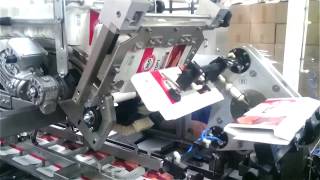

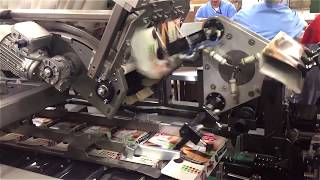

  • rotary mechanism for destacking, opening and placement of cartons, based on planetary gear mechanism with vacuum grippers;
  • optical sensor of product presence;
  • no carton - no product system;
  • protection system of units in case of product feeding into defective box;
  • carton blanks presence sensor in stacker;
  • Nordson ProBlue glue station;
  • Vacuum pump;
  • Gluing of flaps by hot melt or folding.
  • Fixation of box flaps with melted glue or with special locks;
The machine is designed for forming cardboard boxes from carton blanks and filling it by packed products. The process of forming, filling and closing of boxes is fully automated. Automatic stacker SPM-HAS 200 is designed for operation with wide range of food and non-food products. Due to its modular design, SPM-HAS 200 can be easily integrated into existing production lines for operation with following products:
  • Dairy products: curd mass, cottage cheese bars, cheese, processed cheese, ice cream.
  • Grocery: spaghetti (secondary packaging)
  • Bakery and confectionery products: honey, eclairs and profiteroles, marshmallows, jelly candy, meringue, waffles and waffle cake, cupcakes, cookies, chocolate, various types of bars, cakes, croissants, bread, pizza, pie.
  • Meat products: meat, packed minced meat, dumplings, salami and sausages, frozen uncooked food, products
  • Dried fruits
  • Household chemicals and personal hygiene products: soap, sponges, toothbrushes and pastes, care products
  • Pharmaceutical products: medical kits, pregnancy tests, blisters, ampoules, packaging of wax strips for epilation, bandages; cotton wool.
  • Frozen precooked food.


Kinematical speed, max, cycles/min. 200 boxes/min
Power supply 380 V, 50 Hz
Power consumption, kW 10
Air pressure, MPa 0,6±0,5
Air consumption, l/min 50
Machine length, mm 4600
Machine width, mm 2120
Machine height, mm 1500
Machine weight, kg 1400
  • Product feeding conveyor
  • Box transportation catenary
  • Box filling conveyor with pushers
  • Discharge conveyor
  • Destacking mechanism
  • Mechanism of box preliminary opening
  • Carton blanks stacker
  • Glue station
  • Control panel
  • Stainless steel frame
  • Printer
  • Rotary stacker
