- Work table with pneumatic pusher
- Wrapping unit (inc. output conveyor)
- 1 section thermo tunnel
- Machines
- Shrink equipment
- TURBOPACK 254

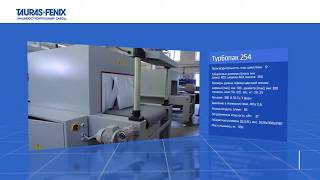

TURBOPACK 254
Shrink wrapping machine TURBOPACK 254 is a basic machine of «TURBOPACK» series. The machine operates in semiautomatic mode: manual delivery of product units to the work table and block forming and automatic distribution of the block to sea...
Details
- Two rolls on top and bottom.
- High capacity
- Semiautomatic (place the product, press the button, further operations are performed automatically)
- Large tunnel size for packaging
- Operates with thick film
Shrink wrapping machine TURBOPACK 254 is a basic machine of «TURBOPACK» series. The machine operates in semiautomatic mode: manual delivery of product units to the work table and block forming and automatic distribution of the block to sealing stand area, film casing and shrink wrapping. Optionally the machine may be equipped with feeding conveyor, making provision for the machine incorporation into the production lines.
Products to be packed:
Blocks of products, large single items.
| Kinematical speed, max, cycles/min. | 12 |
| Block width, mm | 400 |
| Block length, mm | 500 |
| Block height, mm | 280 |
| Film thickness, mcr | 50-120 |
| Film reel width, max, mm | 700 |
| Film reel diameter, max, mm | 300 |
| Film reel weight, max, kg | 20-25 |
| Thermo tunnel dimensions, mm | 1300x680x500 |
| Thermo tunnel conveyor speed, m/min. | 4-9 |
| Power supply | 380 V, 50 Hz |
| Power consumption, kW | 23,5 |
| Air pressure, MPa | 0,6 |
| Air consumption, l/min | 390 |
| Machine length, mm | 3550 |
| Machine width, mm | 1300 |
| Machine height, mm | 1960 |
| Machine weight, kg | 960 |
- Transport systems (roll tables)
- Discharge conveyor (belt or plate)
- Optionally the work table can be replaced with feeding conveyor (model 255)
-
Unit of upper unwinding film roll loading and fixation
