LINEPACK MINI

Multipurpose packaging machine Linepack Mini with a rotary platform combines the functions of vertical and horizontal packaging machines and can pack various food and non-food products in three-seam heat-sealable Flow Pack package type.

...
Details

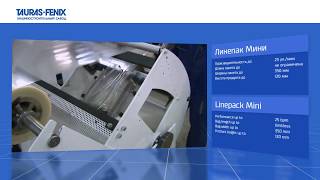

Video:

Packaging:

Ask for a price

Ask a question about a product

The special design provides an option to adjust the angle between 0 and 90, which allows the packaging of loose products (cereals, candies, cookies, etc.) as well as piece goods. The machine has no restrictions for the length of the product - it can start as short as 10cm and continue endlessly from there.

The advantages of semiautomatic Linepack Mini are as follows: easy transitioning for different pack sizes and compact dimensions of the machine.

Products to be packed:

Baked goods and confectionery products (waffles, bread, pizza, cakes, biscuits, sweets, rolls), ice cream (cups, bars), cheese, frozen foods (burgers, fish sticks, dumplings, pancakes), vegetables, fresh herbs, industrial products (bandages, cotton pads, cloths, sponges, soap bars), products on trays.

Kinematical speed, max, cycles/min.	25
Film type	Polyethylenes, polypropylenes
Film thickness, mcr	25-40 (up to 70 under certain conditions)
Product width, min, mm	25
Product width, max, mm	320
Product length, min, mm	100
Product length, max, mm	Limitless
Product height, max, mm	180
Power supply	220 V, 1-Ph, 50 Hz
Air pressure, MPa	0,6
Air consumption, l/min	40
Machine length, mm	1200
Machine width, mm	1200
Machine height, mm	1600
Machine weight, kg	600

Packaging unit with an adjustable bag former
Film centering unit (manual)
Bag length sensor
Automatic splitting up of the sealing wheels
