- Multihead Weigher AMATA-КАТЕ-214-R
Weight Raman (multihead) dispenser with two levels 14 pockets ensures accurate dosing speeds of up to 140 doses/min.
руб.
В наличии

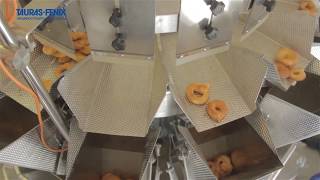

Multihead Weigher AMATA-КАТЕ-214-R
Combinational multihead weigher AMATA-КАТЕ-214-R with 14 weighing pockets is designed to accurately dose and fill free-flowing small, medium and large size products. The principle of combinational dosing grants high packing accuracy while maintai...
Details
- High weighing accuracy
- High speed for different product types
Combinational multihead weigher AMATA-КАТЕ-214-R with 14 weighing pockets is designed to accurately dose and fill free-flowing small, medium and large size products. The principle of combinational dosing grants high packing accuracy while maintaining high efficiency (up to 140 doses/min). All parts in contact with the product are made of polished stainless steel (for frozen products – corrugated stainless steel). The weigher is equipped with an automatic dosing process adjustment function together with the function of rejection. Multihead weigher can be used as an independent unit with an external control system or as a combination with filling & packaging machines of Tauras-Fenix.
Products to be packed:
Loose, free-flowing and small piece products with a possibility to dose abrasive products. Confectionery: cookies, candies, sushki, spice cakes, etc. Grocery: grains, cereals, macaroni, tea, coffee, sugar, salt, spices (pepper, sweet peas, cloves, bay leaves, etc.). Snacks: chips, nuts, dried fruit, etc. Frozen products: vegetables, berries, mushrooms, seafood, ravioli, etc. Non-food products: detergents, granulated fertilizers, animal food, building materials, etc.
| Kinematical speed, max, cycles/min. | 140 |
| Dose weight, min, kg | 0,015 |
| Dose weight, max, kg | 1,5 |
| Dosing type | Combinational weighing |
| Dosing accuracy | Meets Russian State standards |
| Discreteness of weight measuring, g | 0,1 |
| Weighing pockets number, pcs | 10 |
| Weighing pockets volume, l | 0,5 / 1,3 / 2,5 / 5,5 |
| Power supply | 220 V, 1-Ph, 50 Hz |
| Power consumption, kW | 1,8 |
| Machine length, mm | Depends on the version |
| Machine width, mm | Depends on the version |
| Machine height, mm | Depends on the version |
| Machine weight, kg | Depends on the version |
| Structure material | Stainless steel (smooth/corrugated) |
