• High weighing accuracy
  • High speed for different product types

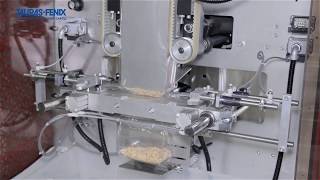

Combinational multihead weigher AMATA-КАТЕ-210-R with 10 weighing pockets is designed to accurately dose and fill free-flowing small, medium and large size products. The principle of combinational dosing grants high packing accuracy while maintaining high efficiency (up to 90 doses/min). All parts in contact with the product are made of polished stainless steel (for frozen products – corrugated stainless steel). The weigher is equipped with an automatic dosing process adjustment function together with the function of rejection. Multihead weigher can be used as an independent unit with an external control system or as a combination with filling & packaging machines of Tauras-Fenix.

Products to be packed:

Loose, free-flowing and small piece products with a possibility to dose abrasive products. Confectionery: cookies, candies, sushki, spice cakes, etc. Grocery: grains, cereals, macaroni, tea, coffee, sugar, salt, spices (pepper, sweet peas, cloves, bay leaves, etc.). Snacks: chips, nuts, dried fruit etc. Frozen products: vegetables, berries, mushrooms, seafood, ravioli etc. Non-food products: detergents, granulated fertilizers, animal food, building materials, etc.

Kinematical speed, max, cycles/min. 90
Dose weight, min, kg 0,015
Dose weight, max, kg 1,5
Dosing type Combinational weighing
Dosing accuracy Meets Russian State standards
Discreteness of weight measuring, g 0,1
Weighing pockets number, pcs 10
Weighing pockets volume, l 0,8 / 1,3 / 2,5 / 5,5
Power supply 220 V, 1-Ph, 50 Hz
Power consumption, kW 1,8
Machine length, mm Depends on the version
Machine width, mm Depends on the version
Machine height, mm Depends on the version
Machine weight, kg Depends on the version
  • Receiving funnel
  • Dispensing unit (distributing cone)
  • Radial feeders
  • Accumulating bins
  • Weighing bins
  • Weight measuring units
  • Filler computer
  • Control unit
  • Slopes
  • Set of sensors to control product's levels
  • Vibrating chutes
  • Empty funnel
  • Timing Hopper
  • Timing Hopper «Duck-Mouth»
  • Ring Shutter
  • Product Damper
  • Dual Timing Hopper
  • Rotary Dispenser
  • Leveler
  • Multi-mouth Top Cone
  • Individual Chutes for Each Stream
  • Pedestal
  • Platform
