SEMI-AUTOMATIC CASE SEALER RCS-25T

Semi-automatic corrugated cases sealer is a universal and essential machine at the enterprise, in the production process of which technicians deal with product packing into cases of different formats and sizes. The device performs sealing of the uppe...
Details

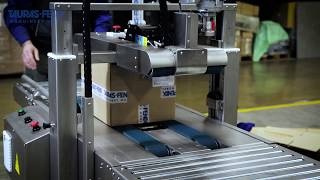

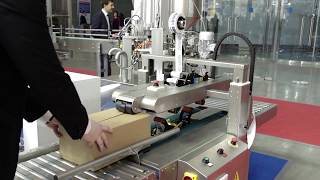

Video:

Packaging:

Semi-automatic corrugated cases sealer is a universal and essential machine at the enterprise, in the production process of which technicians deal with product packing into cases of different formats and sizes. The device performs sealing of the upper and lower valve with adhesive tape at the same time, which makes it possible to increase the speed of operation several times. Despite the fact that the sealer is semi-automatic, adjusting for the case dimensions is made in automatic mode, which allows the operator to seal up to 1500 case per hour, without spending time to readjust to a different format.
o    Multi-format
o    Compact size
o    Increased operational capacity
o    Improving the quality of product packing
o    Saving consumables by minimizing the consumption of scotch tape
Kinematical speed, max, cycles/min. 25
Performance, max, boxes/min. 25
Box type american case
Box length, mm from 150
Box width, mm 150 - 550
Высота короба, мм 120 - 620
Power supply 220 V, 50 Hz
Power consumption, kW 0,4
Machine length, mm 2130
Machine width, mm 900
Machine height, mm 1500
Machine weight, kg 215
STANDARD ACCESSORIES
side guides unit
lower drive conveyor
upper drive conveyor
roller infeed conveyor
roller discharge conveyor
upper and lower sealing heads (scotch tape)
