Two-lane vertical automatic filling and packaging machine Pitpack Mzh 5000 is designed to fill and package liquid and paste products in heat-sealed bags. Machine combines two basic models in one structure with a mutual controlling system, which p...

Details

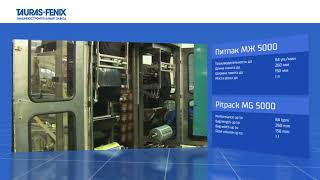

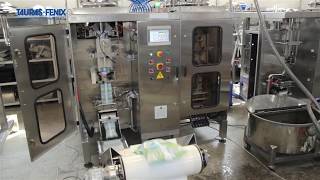

Video
Type of packaging
Type of product
Show more
Get a consultation
DESCRIPTION Technical data Standard accessories Optional

Two-lane vertical automatic filling and packaging machine Pitpack Mzh 5000 is designed to fill and package liquid and paste products in heat-sealed bags. Machine combines two basic models in one structure with a mutual controlling system, which provides a doubled performance with easy maintenance and relatively compact dimensions. Machine can operate with a photo cell or without it (floating design). Date can be printed on any part of the bag. Machine is equipped with two volumetric piston fillers and two 60 l hoppers.

Products to be packed:
Milk, yogurt, sour cream, cream, oils, sauces, mayonnaise, mustard, ketchup, jam, etc. Liquid non-food products: chemicals, liquid soap, washing fluids, etc.

Advantages

  • Two-lane working mode enables high performance
  • Filling both liquid and viscous paste products
  • Stainless steel structure
  • Film stabilizing unit provides high quality of seam
  • Effective defoaming system
  • Vacuuming ejector
  • CIP-cleaning adapted
Name Value
Kinematical speed, max, cycles/min. 84 (42х2)
Dose volume, max, l 1
Product tube diameter, mm 95
Bag width, max, mm 150
Bag length (single pulling), mm 260 (300 upon request)
Film type Polyethylene
Film thickness, mcr 70-90
Film reel width, max, mm 320
Film reel diameter, mm 350
Film reel weight, max, kg 40
Film unwinding drive unit Asynchronous
Film pulling drive unit Inching motor
Longitudinal seal drive unit Pneumatic
Transversal seal drive unit Pneumatic
Sealing type Pulse
Filler as standard equipment 2 volumetric piston fillers, 2 60l hoppers
Power supply 380 V, 3-Ph, 50 Hz
Power consumption, kW 4
Air pressure, MPa 0,6
Air consumption, l/min 2000
Machine length, mm 1860
Machine width, mm 1300
Machine height, mm 2150 (3200 with filler)
Machine weight, kg 1000
Structure material Stainless steel
  • Forced film unwinding unit
  • Film pulling unit
  • Pillow bag forming unit
  • Vertical and horizontal sealing units
  • Pulse welding
  • Seam cooling unit (blowing system)
  • Photo cell sensor
  • Defoaming system
  • Excess air removing system
  • Thermo printer
  • UV-lamp for film treatment
  • PLC panel
  • A set to convert from one bag size and type to another
  • Discharging conveyors
