SR 400
The SR 400 horizontal flow wrapper is designed to be integrated in fully automatic packaging lines being able to achieve high production speed. This machine, embodies all Sigitaspak know - how and it is designed to satisfy the most exigent requiremen...
Details
Details

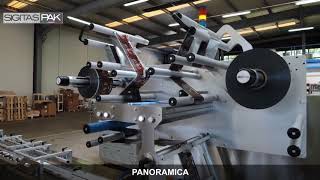

The SR 400 horizontal flow wrapper is designed to be integrated in fully automatic packaging lines being able to achieve high production speed. This machine, embodies all Sigitaspak know - how and it is designed to satisfy the most exigent requirement in the food industry. It can be implemented with the proper feeding systems according to the products to be packed such biscuits, chocolate bars, muffin, etc. Managing software has been purposely designed to minimize operator’s intervention during production. One controller commands all axis and it is interfaced with the revolving arm to facilitate the operator’s work. The SR 400 flow wrapper, is available either with 3 or 4 pairs of longitudinal sealing wheels.
Performance, max, bpm | 600 |
Product width, min, mm | 100 |
Product width, max, mm | 800 |
Product height, max, mm | 180 |
Film type | Multilayer laminates with high barrier characteristics, thermo-sealing barrier films, polypropylene |
Film reel width, max, mm | 80 |
Film reel width, max, mm | 400 |
Film reel diameter, max, mm | 350 |
Transversal seal mechanism | Box motion |
Power supply | 380V, three-phase + N + G, 50Hz |
Power consumption, kW | 13,8 |
Control panel | 13” color touch screen |
Receipt number, pcs | 100 |
Machine length, mm | 6286 |
Machine width, mm | 1466 |
Machine height, mm | 2164 |
Machine weight, kg | ~ 1400 |
Structure material | Stainless steel AISI 304 |
- Motorized reel holder
- Double reel holder
- Gas injection
- Gas analyzer
- Euroslot
- Printer
- Pneumatic gussetting
- Kissing belt
- Loading conveyor’s elongation
- In-Out pressure device
- Pre-heating for the first pair of wheels
- Swarf’s cut and retrieval
