PASTPACK OR

Filling and packaging Pastpack OR machine is designed as a special version of basic rotary machine. Open slots of a rotary table and an in-line machine configuration solves these special tasks:

  • Filling into containers of irregular s...
    Details

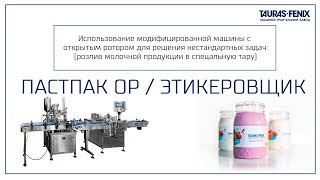

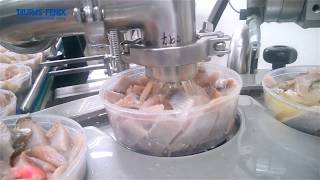

Video:

Packaging:

Filling and packaging Pastpack OR machine is designed as a special version of basic rotary machine. Open slots of a rotary table and an in-line machine configuration solves these special tasks:

  • Filling into containers of irregular shape (containers can't be placed in slots vertically)
  • Filling into glass, metal containers
  • Filling into bottles/cups higher than 200 mm
  • Sealing of filled containers (e.g. while packaging fish preserves)
Products to be packed:

Different products being packed into containers of irregular shape and material.

Kinematical speed, max, cycles/min. 25
Round cup diameter, max, mm 140
Cup/container height, max, mm 250
Rotary table drive unit Electromechanical
Power supply 220 V, 1-Ph, 50 Hz
Power consumption, kW 2,2
Air pressure, MPa 0,6
Air consumption, l/min 450
Machine length, mm 3560
Machine width, mm 960
Machine height, mm 1950
Machine weight, kg 300
Structure material Stainless steel
  • Plate conveyor with an adjustable sideways monitor and an optical restriction of the container's path sensor
  • Rotary turntable with open pockets
  • Optical sensor to monitor container availability in a turntable pocket
  • Stand-alone volumetric filler
  • Foil lid placing unit
  • Foil lid sealer
  • Container feeder
