PASTPACK OR

Back Filling and packaging Pastpack OR machine is designed as a special version of basic rotary machine. Open slots of a rotary table and an in-line machine configuration solves these special tasks: Filling into containers of irregular s... Details Video Youtube Type of packaging Stand Pouch Type of product Show more Mayonnaise Sour cream Yogurt Milk Natural yogurt Get a consultation DESCRIPTION Technical data Standard accessories Filling and packaging Pastpack OR machine is designed as a special version of basic rotary machine.

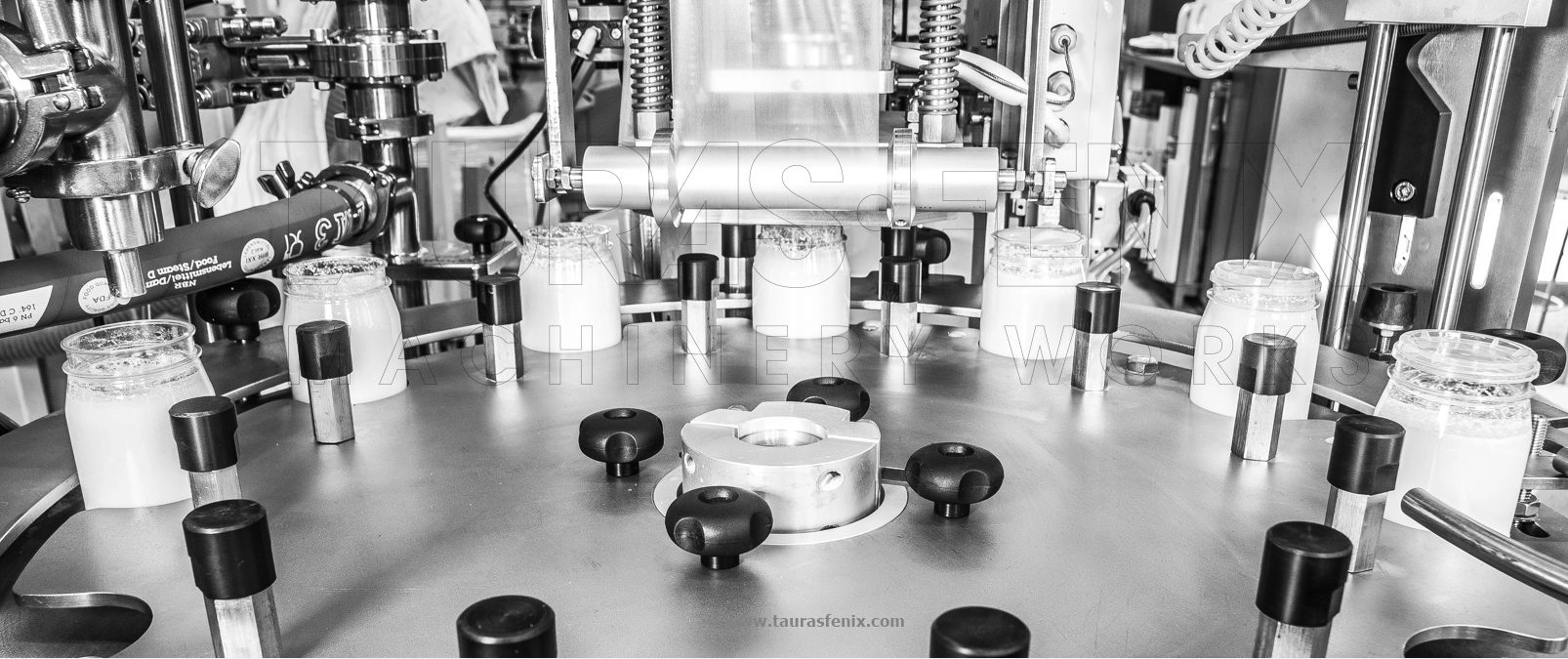

Open slots of a rotary table and an in-line machine configuration solves these special tasks: Filling into containers of irregular shape (containers can't be placed in slots vertically) Filling into glass, metal containers Filling into bottles/cups higher than 200 mm Sealing of filled containers (e.g. while packaging fish preserves) Products to be packed: Different products being packed into containers of irregular shape and material. Name Value Kinematical speed, max, cycles/min.

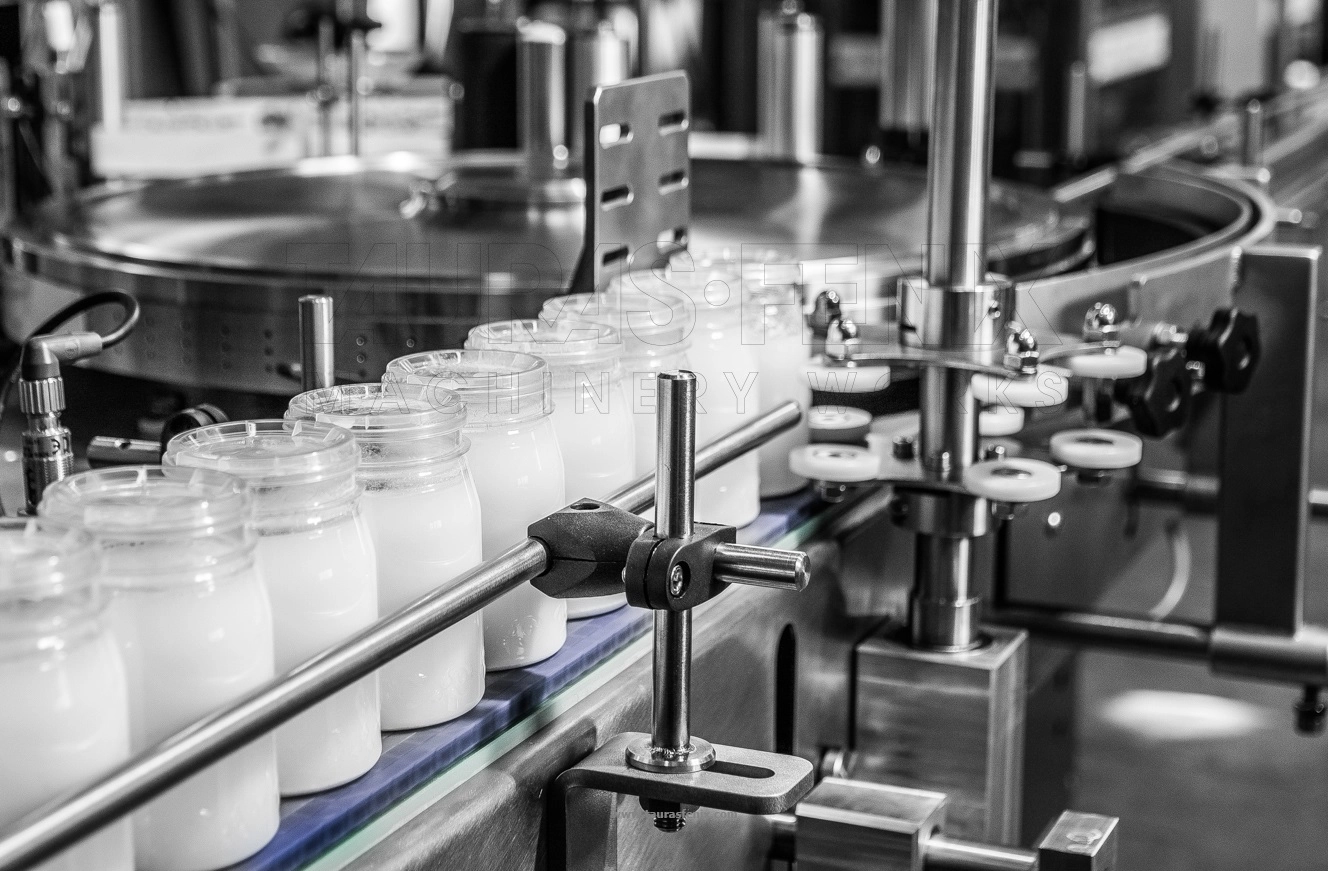

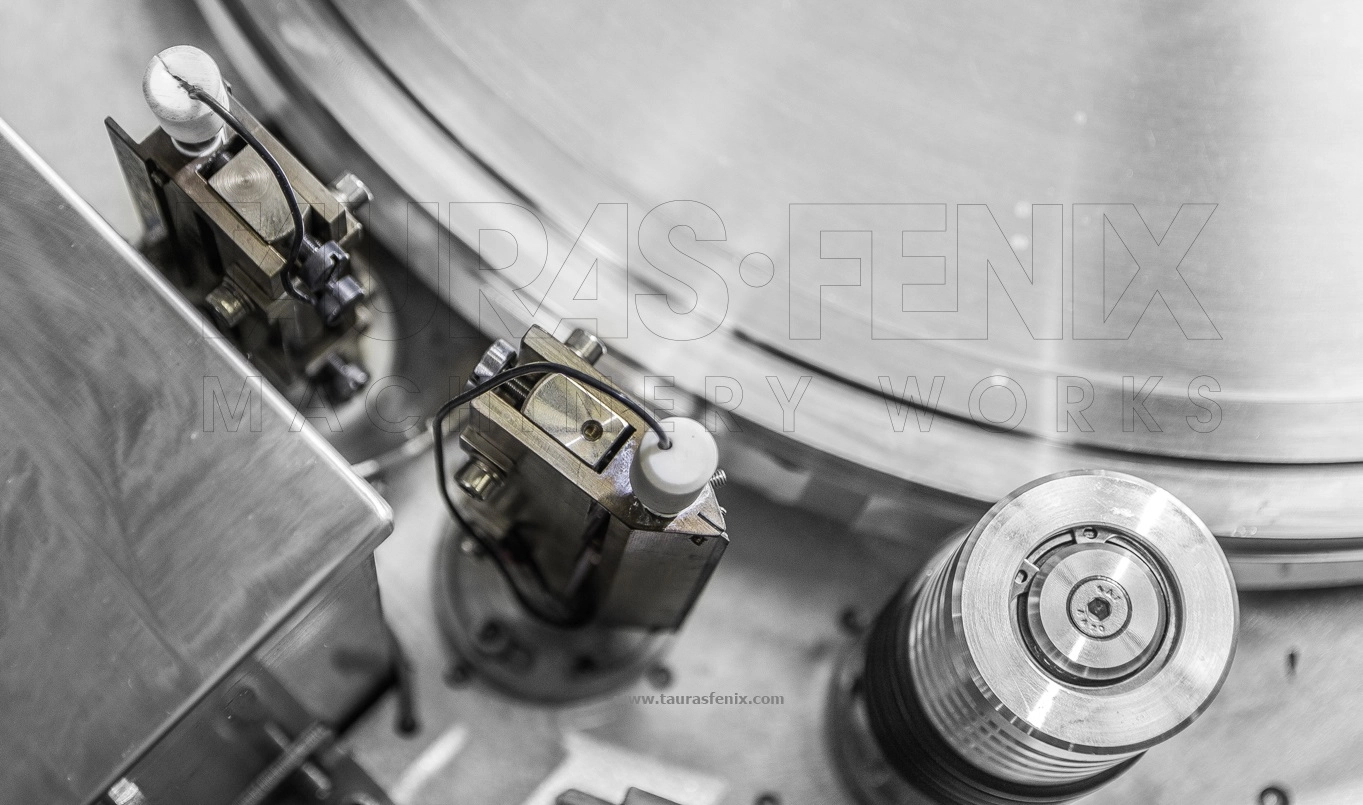

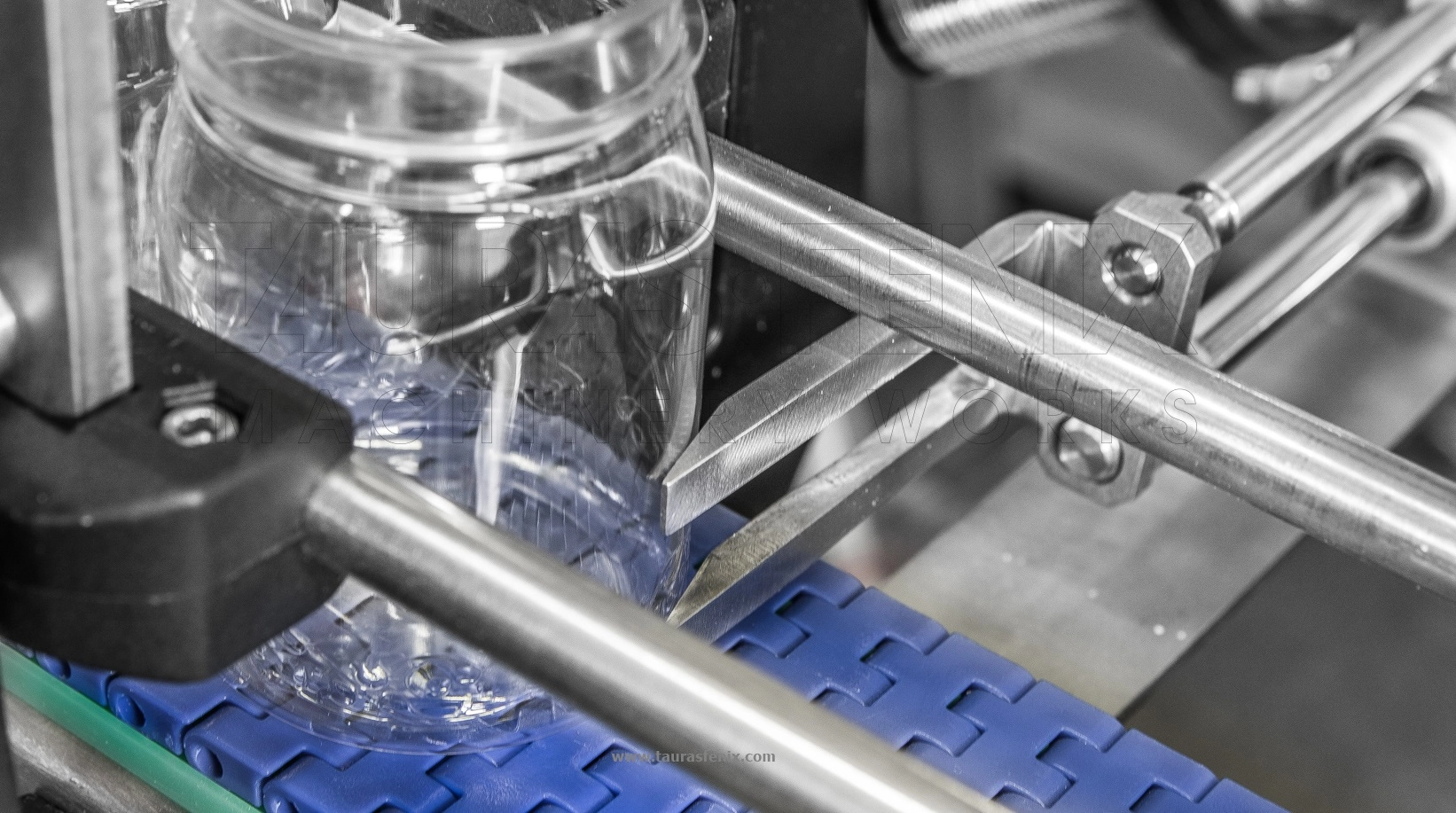

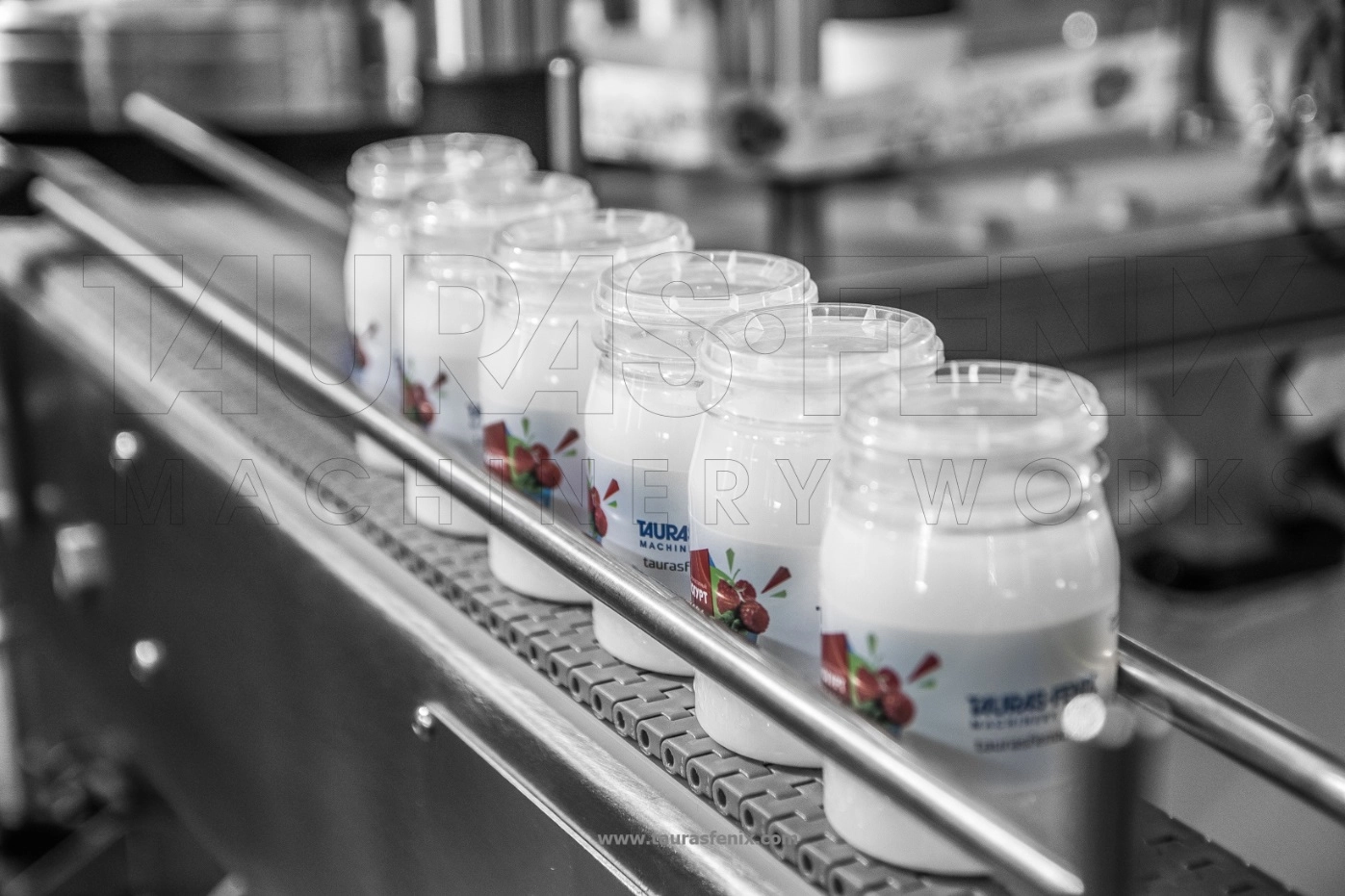

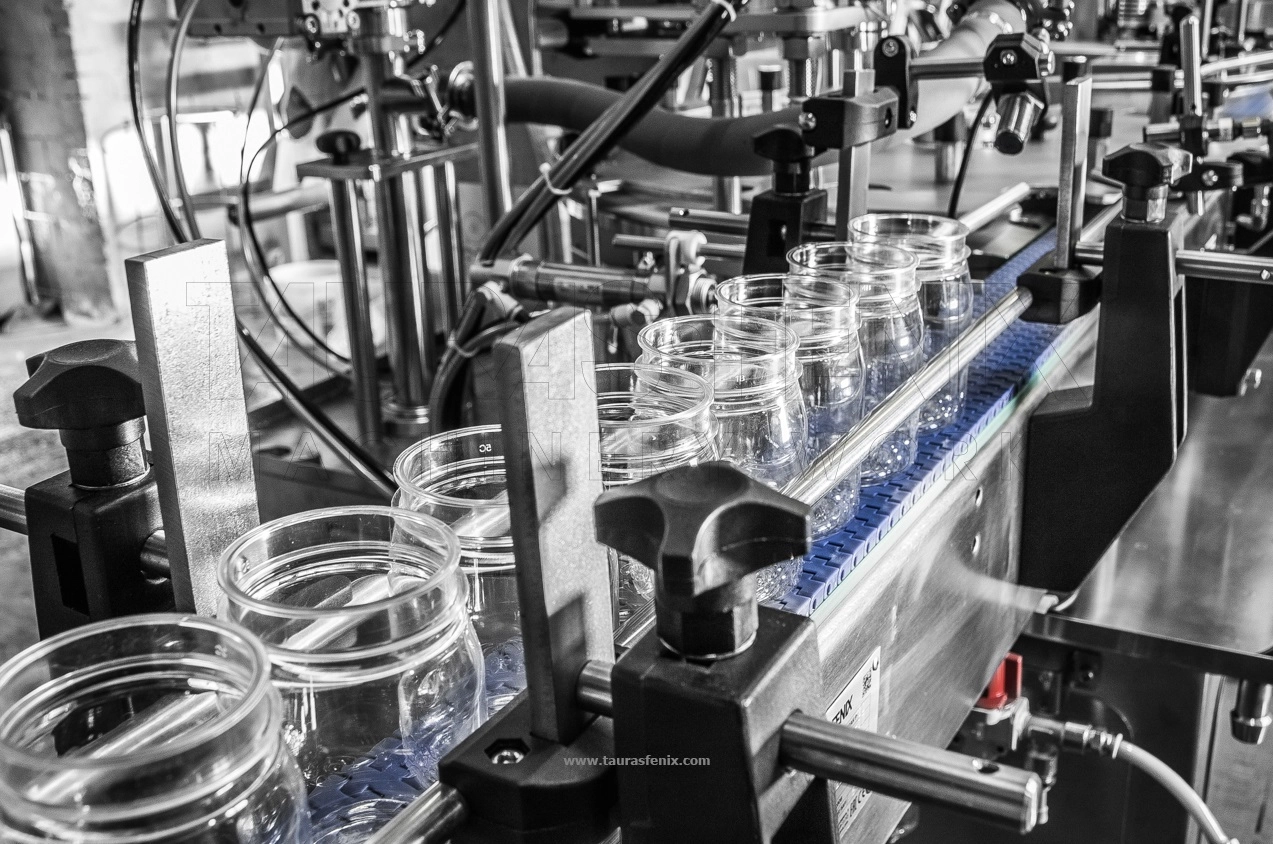

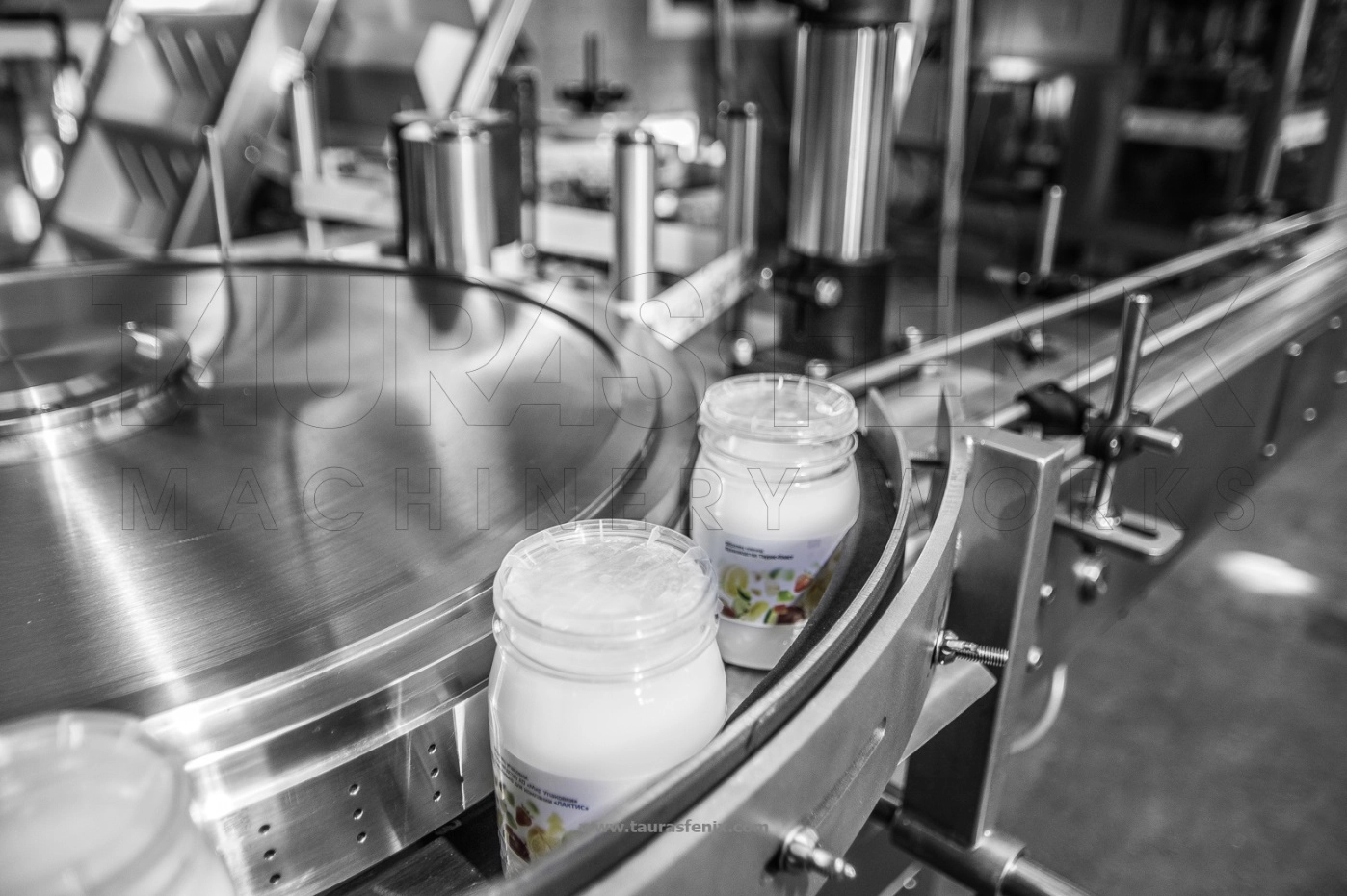

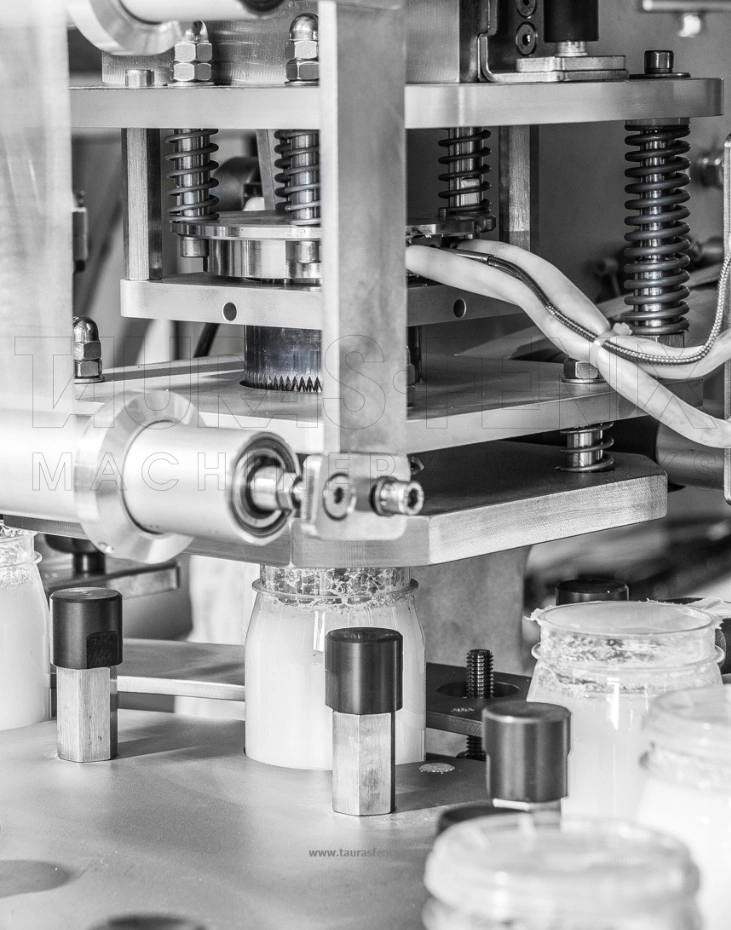

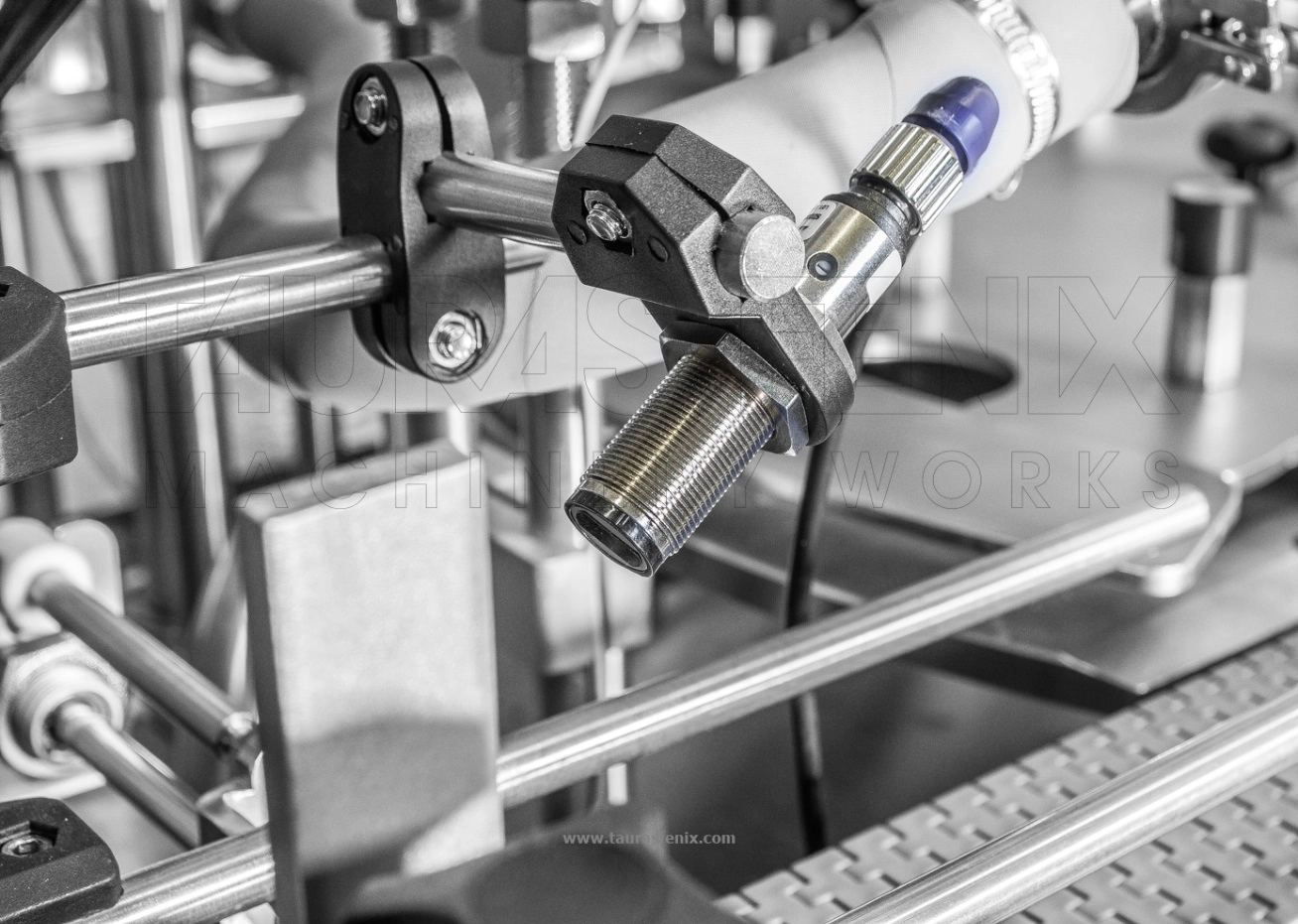

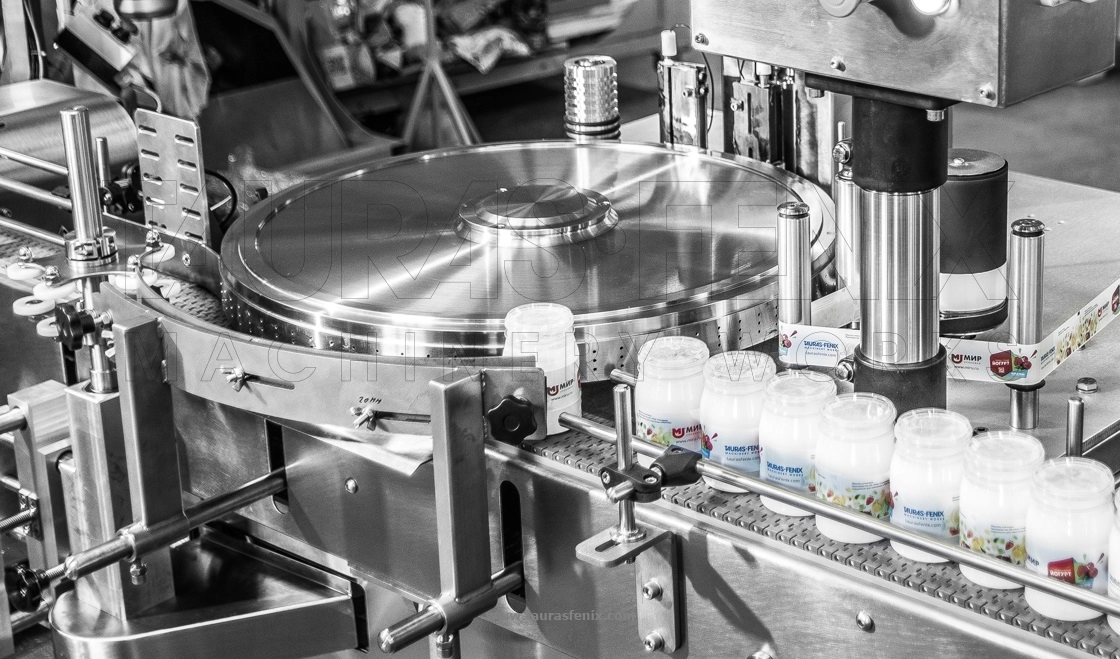

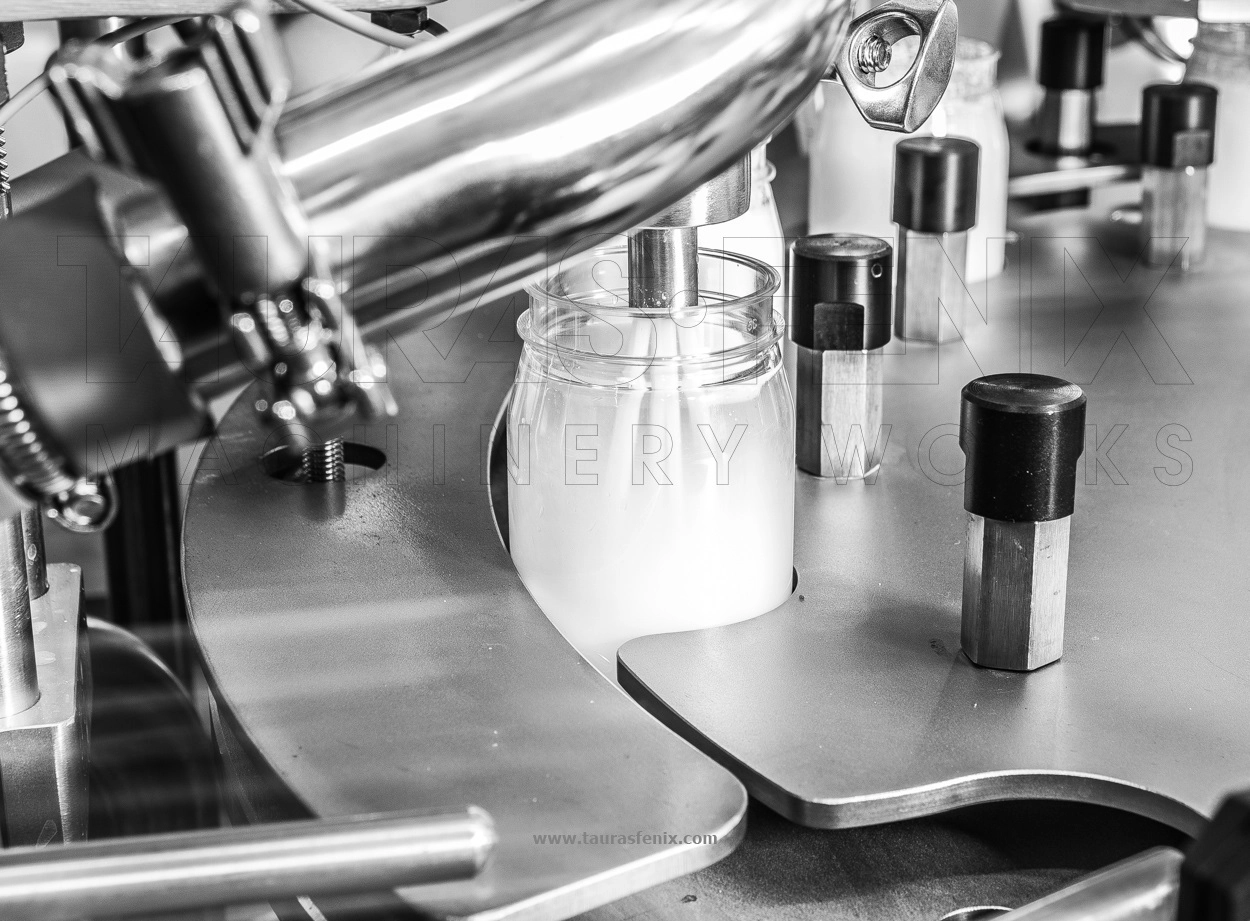

25 Round cup diameter, max, mm 140 Cup/container height, max, mm 250 Rotary table drive unit Electromechanical Power supply 220 V, 1-Ph, 50 Hz Power consumption, kW 2,2 Air pressure, MPa 0,6 Air consumption, l/min 450 Machine length, mm 3560 Machine width, mm 960 Machine height, mm 1950 Machine weight, kg 300 Structure material Stainless steel Plate conveyor with an adjustable sideways monitor and an optical restriction of the container's path sensor Rotary turntable with open pockets Optical sensor to monitor container availability in a turntable pocket Stand-alone volumetric filler Foil lid placing unit Foil lid sealer Container feeder Other products in this section Pastpack R2/multicomponent product PASTPACK 8L PASTPACK 6L PASTPACK 4L ULTRA CLEAN PRO PASTPACK 4L PASTPACK 2L PASTPACK L PASTPACK RP PASTPACK 4R PASTPACK 2R2 with two rows PASTPACK 2R2 PASTPACK 2R PASTPACK R2 with two rows PASTPACK R2 PASTPACK R PASTPACK R MINI Тип продукции, который используются в выбранной машине Майонез Сметана Йогурт Молоко Кефир и кисломолочные продукты Equipment By product About us Projects Press-center Contacts
