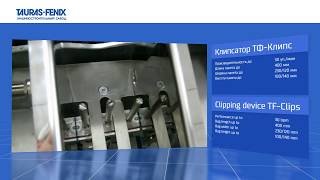

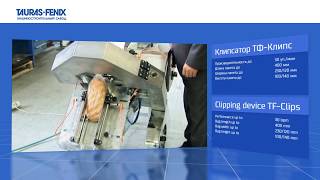

TF-CLIPS clipping device

Packaging:

Machines:

  • Possibility to control the angle of slope of the output conveyor that particularly fits to packaging of long and fragile products
  • Special doors in the input which prevent damaging the cut bread
  • Machine parts which are in contact with products made of stainless steel
  • In the base arrangement the date is stamped on the clip that eliminates additional consumables costs during operation
  • Possibility to install a thermo printer for hot printing on the clips

Semiautomatic machine of linear type designed to pack products into package with clip.

Products to be packed:

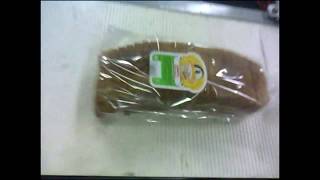

Bread (whole, cut) – rectangular, round and oval shapes, long loaf, small loaf, patties etc. Other products which need packages with clips such as candies, ravioli, croissant etc.

Kinematical speed, max, cycles/min. 30
Product width, max, mm 230 / 120
Product length, max, mm 400
Product height, max, mm 100 / 140
Power supply 220 V, 1-Ph, 50 Hz
Power consumption, kW 0,4
Machine length, mm 1380
Machine width, mm 690
Machine height, mm 1070
Machine weight, kg 160
